ContactCS Developer Guide

---

Acknowledgements

1. The Undo/Redo features of ContactCS are implemented with references to the [Proposed] Undo/redo feature section in the original AB3 Developer Guide. During the development process of these two features, the codes are written by our own developers, based on the suggested architectural design and APIs mentioned in the above documentation.
2. The Overview of GUI section under UserGuide is adpated from CS2103T-F12-3's MediBase3.
3. Github Copilot was used to generate some Javadoc and unit test code.

---

Setting up, getting started

Refer to the guide Setting up and getting started.

---

Design

Architecture

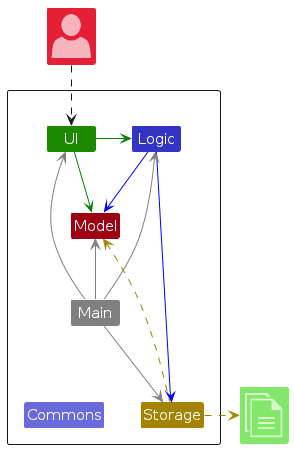

The Architecture Diagram given above explains the high-level design of the App.

Given below is a quick overview of main components and how they interact with each other.

Main components of the architecture

Main (consisting of classes Main and MainApp) is in charge of the app launch and shut down.

• At app launch, it initializes the other components in the correct sequence, and connects them up with each other.
• At shut down, it shuts down the other components and invokes cleanup methods where necessary.

The bulk of the app's work is done by the following four components:

• UI: The UI of the App.
• Logic: The command executor.
• Model: Holds the data of the App in memory.
• Storage: Reads data from, and writes data to, the hard disk.

Commons represents a collection of classes used by multiple other components.

How the architecture components interact with each other

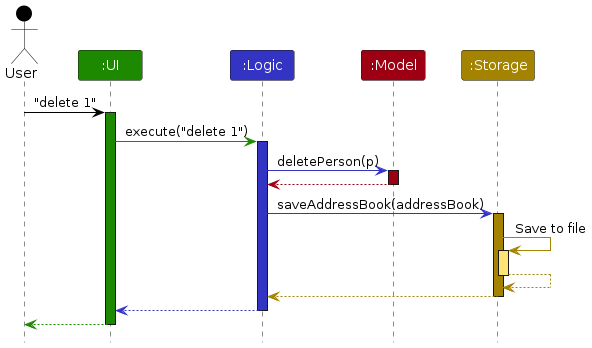

The Sequence Diagram below shows how the components interact with each other for the scenario where the user issues the command delete 1.

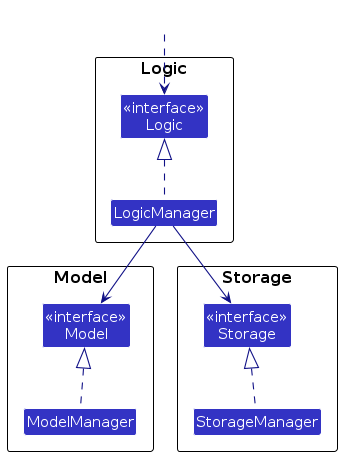

Each of the four main components (also shown in the diagram above),

• defines its API in an interface with the same name as the Component.
• implements its functionality using a concrete {Component Name}Manager class (which follows the corresponding API interface mentioned in the previous point.

For example, the Logic component defines its API in the Logic.java interface and implements its functionality using the LogicManager.java class which follows the Logic interface. Other components interact with a given component through its interface rather than the concrete class (reason: to prevent outside component's being coupled to the implementation of a component), as illustrated in the (partial) class diagram below.

The sections below give more details of each component.

UI component

The API of this component is specified in Ui.java

The UI consists of a MainWindow that is made up of parts e.g.CommandBox, ResultDisplay, PersonListPanel, HistoryCommandListPanel, StatusBarFooter etc. All these, including the MainWindow, inherit from the abstract UiPart class which captures the commonalities between classes that represent parts of the visible GUI.

The UI component uses the JavaFx UI framework. The layout of these UI parts are defined in matching .fxml files that are in the src/main/resources/view folder. For example, the layout of the MainWindow is specified in MainWindow.fxml

The UI component,

• executes user commands using the Logic component.
• listens for changes to Model data so that the UI can be updated with the modified data.
• keeps a reference to the Logic component, because the UI relies on the Logic to execute commands.
• depends on some classes in the Model component, as it displays Person object residing in the Model.

Logic component

API : Logic.java

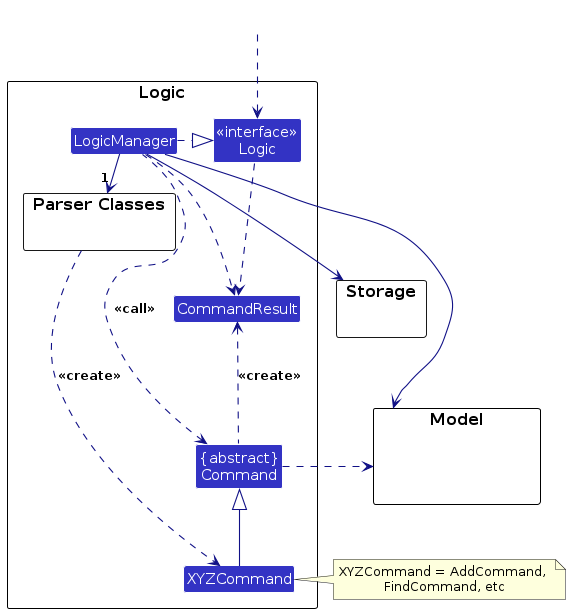

Here's a (partial) class diagram of the Logic component:

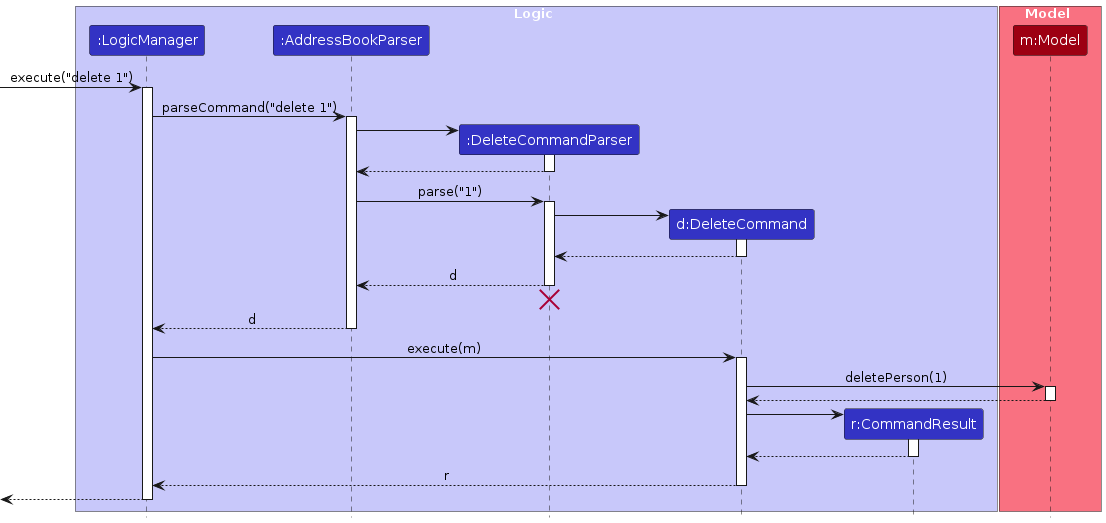

The sequence diagram below illustrates the interactions within the Logic component, taking execute("delete 1") API call as an example.

How the Logic component works:

1. When Logic is called upon to execute a command, it is passed to an AddressBookParser object which in turn creates a parser that matches the command (e.g., DeleteCommandParser) and uses it to parse the command.
2. This results in a Command object (more precisely, an object of one of its subclasses e.g., DeleteCommand) which is executed by the LogicManager.
3. The command can communicate with the Model when it is executed (e.g. to delete a person).
   Note that although this is shown as a single step in the diagram above (for simplicity), in the code it can take several interactions (between the command object and the Model) to achieve.
4. The result of the command execution is encapsulated as a CommandResult object which is returned back from Logic.

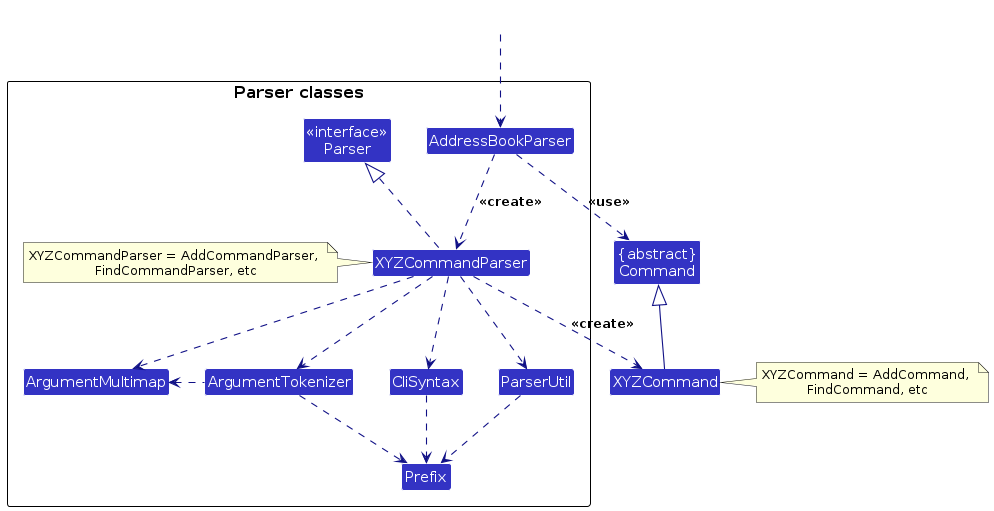

Here are the other classes in Logic (omitted from the class diagram above) that are used for parsing a user command:

How the parsing works:

• When called upon to parse a user command, the AddressBookParser class creates an XYZCommandParser (XYZ is a placeholder for the specific command name e.g., AddCommandParser) which uses the other classes shown above to parse the user command and create a XYZCommand object (e.g., AddCommand) which the AddressBookParser returns back as a Command object.
• All XYZCommandParser classes (e.g., AddCommandParser, DeleteCommandParser, ...) inherit from the Parser interface so that they can be treated similarly where possible e.g, during testing.

Model component

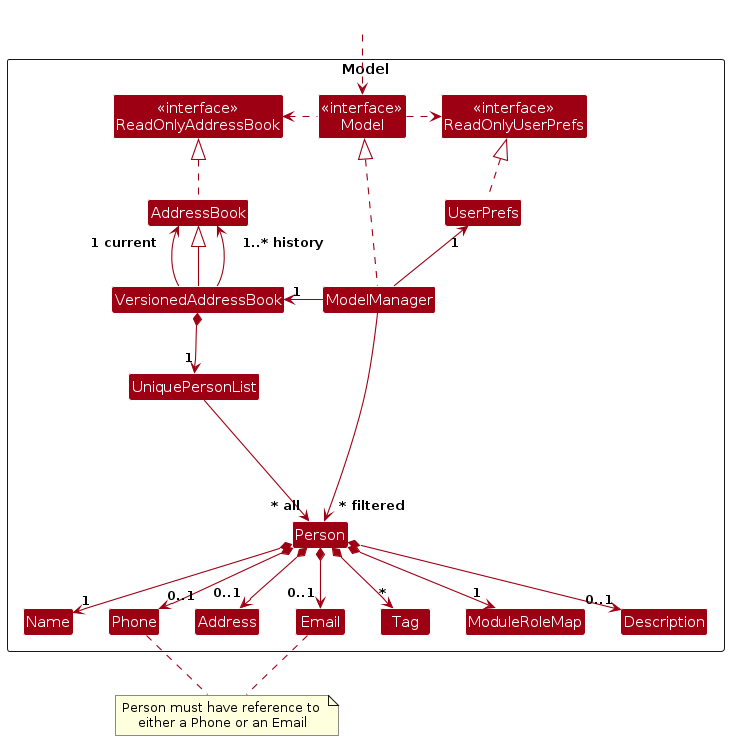

API : Model.java

The Model component,

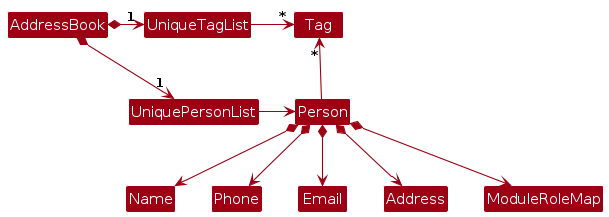

• stores the address book data i.e., all Person objects (which are contained in a UniquePersonList object).
• stores the currently 'selected' Person objects (e.g., results of a search query) as a separate filtered list which is exposed to outsiders as an unmodifiable ObservableList<Person> that can be 'observed' e.g. the UI can be bound to this list so that the UI automatically updates when the data in the list change.
• stores a UserPref object that represents the user’s preferences. This is exposed to the outside as a ReadOnlyUserPref objects.
• does not depend on any of the other three components (as the Model represents data entities of the domain, they should make sense on their own without depending on other components)

Storage component

API : Storage.java

The Storage component,

• can save both address book data and user preference data in JSON format, and read them back into corresponding objects.
• inherits from both AddressBookStorage and UserPrefStorage, which means it can be treated as either one (if only the functionality of only one is needed).
• depends on some classes in the Model component (because the Storage component's job is to save/retrieve objects that belong to the Model)

Common classes

Classes used by multiple components are in the seedu.address.commons package.

---

Implementation

This section describes some noteworthy details on how certain features are implemented.

Undo/redo

The undo/redo mechanism is facilitated by VersionedAddressBook. It extends AddressBook with an undo/redo history, stored internally as an addressBookStateList and currentStatePointer. Additionally, it implements the following operations:

• VersionedAddressBook#commitAddressBook() — Saves the current address book state in its history.
• VersionedAddressBook#undoAddressBook() — Restores the previous address book state from its history.
• VersionedAddressBook#redoAddressBook() — Restores a previously undone address book state from its history.

These operations are exposed in the Model interface as Model#commitAddressBook(), Model#undoAddressBook() and Model#redoAddressBook() respectively.

Given below is an example usage scenario and how the undo/redo mechanism behaves at each step.

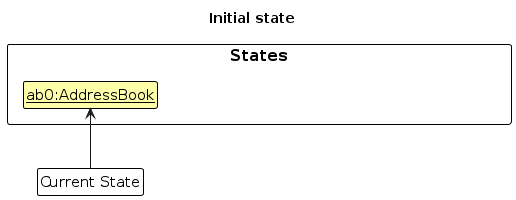

Step 1. The user launches the application for the first time. The VersionedAddressBook will be initialized with the initial address book state, and the currentStatePointer pointing to that single address book state.

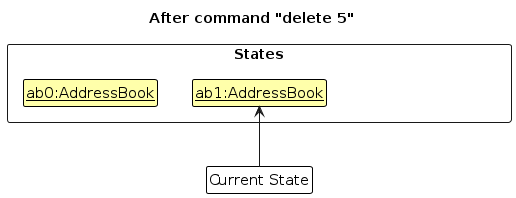

Step 2. The user executes delete 5 command to delete the 5th person in the address book. The delete command calls Model#commitAddressBook(), causing the modified state of the address book after the delete 5 command executes to be saved in the addressBookStateList, and the currentStatePointer is shifted to the newly inserted address book state.

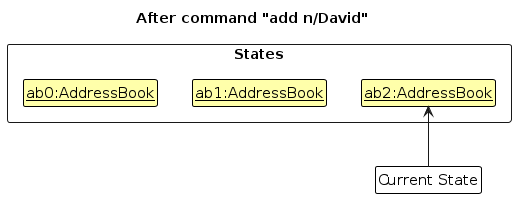

Step 3. The user executes add n/David …​ to add a new person. The add command also calls Model#commitAddressBook(), causing another modified address book state to be saved into the addressBookStateList.

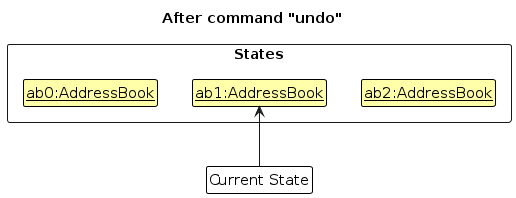

Step 4. The user now decides that adding the person was a mistake, and decides to undo that action by executing the undo command. The undo command will call Model#undoAddressBook(), which will shift the currentStatePointer once to the left, pointing it to the previous address book state, and restores the address book to that state.

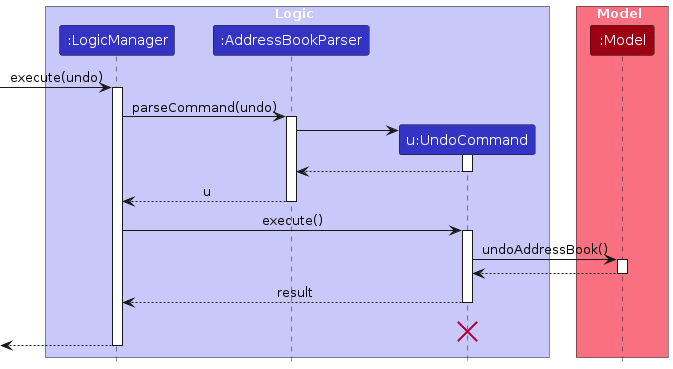

The following sequence diagram shows how an undo operation goes through the Logic component:

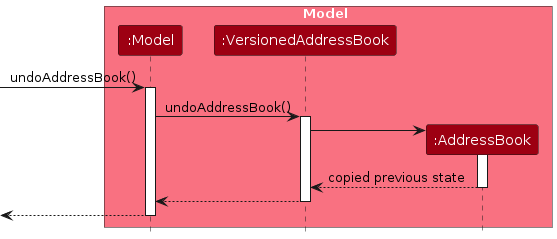

Similarly, how an undo operation goes through the Model component is shown below:

The redo command does the opposite — it calls Model#redoAddressBook(), which shifts the currentStatePointer once to the right, pointing to the previously undone state, and restores the address book to that state.

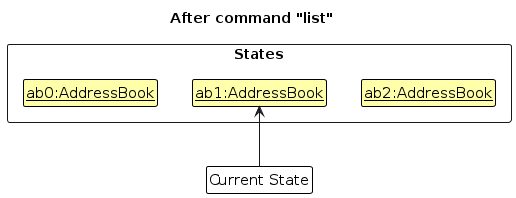

Step 5. The user then decides to execute the command list. Commands that do not modify the address book, such as list, will not call Model#commitAddressBook(), Model#undoAddressBook() or Model#redoAddressBook(). Thus, the addressBookStateList remains unchanged.

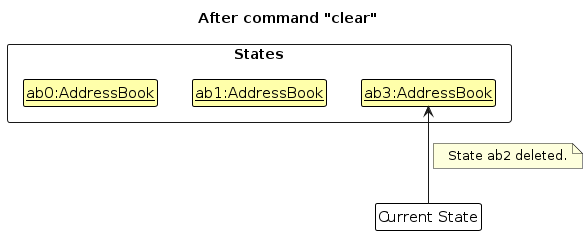

Step 6. The user executes clear, which calls Model#commitAddressBook(). Since the currentStatePointer is not pointing at the end of the addressBookStateList, all address book states after the currentStatePointer will be purged. Reason: It no longer makes sense to redo the add n/David …​ command. This is the behavior that most modern desktop applications follow.

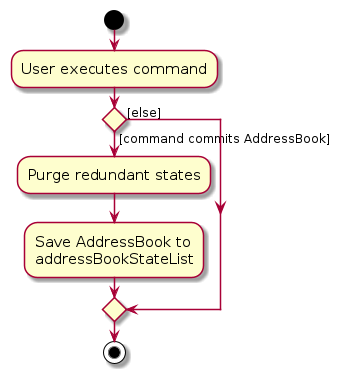

The following activity diagram summarizes what happens when a user executes a new command:

Design considerations:

Aspect: How undo & redo executes:

• Alternative 1 (current choice): Saves the entire address book.

  • Pros: Easy to implement.
  • Cons: May have performance issues in terms of memory usage.

• Alternative 2: Individual command knows how to undo/redo by itself.

  • Pros: Will use less memory (e.g. for delete, just save the person being deleted).
  • Cons: We must ensure that the implementation of each individual command are correct.

---

Documentation, logging, testing, configuration, dev-ops

• Documentation guide
• Testing guide
• Logging guide
• Configuration guide
• DevOps guide

---

Appendix: Requirements

Product scope

Target user profile:

• NUS Computer Science Freshman
• unfamiliar with the school system(team teams, school structures, communication channels etc.)
• has no idea where to look for contact info of relevant personnel when certain issues happen, for example
  • Informing tutor about absence in tutorial/lab due to illness
  • Asking Prof for clarification/actions on certain admin issues
  • Contact school financial office to settle relevant issues
• has a need to manage a significant number of contacts
• find it frustrating to gather contacts from all types of platforms
• has the initiatives to jot down contact info when such information is given during the class
• prefer desktop apps over other types
• can type fast
• prefers typing to mouse interactions
• is reasonably comfortable using CLI apps

Value proposition:
Allows NUS CS freshmen to easily locate the admin contact details when needed, which helps them better manage contact details of their professors, teaching assistants, classmates, CCA mates, offices, emergency helplines, etc. so that they can focus more on their study.

User stories

Priorities: High (must have) - * * *, Medium (nice to have) - * *, Low (unlikely to have) - *

Use cases

(For all use cases below, the System is the ContactCS and the Actor is the CS freshman, unless specified otherwise)

Use case: UC01 Add a contact

MSS

1. User requests to add a new contact by providing the relevant contact details.

2. ContactCS adds the contact to the contact list.

   Use case ends.

Extensions

• 1a. Necessary input is missing.

  • 1a1. ContactCS requests the user to provide the required information

  • 1a2. User enters new data

  • Steps 1a1 - 1a2 are repeated until the data entered contain all the necessary fields

    Use case resumes from step 2.

• 1b. The given format is invalid.

  • 1b1. ContactCS requests the user to provide the correct format and shows the valid command format

  • 1b2. User enters new input

  • Steps 1b1 - 1b2 are repeated until the format for the entered input is correct

    Use case resumes from step 2.

• 1c. The given contact is a duplicate.

  • 1c1. ContactCS shows an error message telling the user that the contact already exists in ContactCS

    Use case ends.

Use case: UC02 Search contact(s)

MSS

1. User requests to search for contact(s) by providing one or more of the following:

   • The name of the contact,
   • The module code (optionally including the role),
   • Tag
   • A combination of above

2. ContactCS shows a list of matching contacts

   Use case ends.

Extensions

• 1a. Necessary input of at least one keyword is missing.

  • 1a1. ContactCS requests the user to provide keyword

  • 1a2. User enters new input

  • Steps 1a1 - 1a2 are repeated until all required fields in the input are complete

    Use case resumes from step 2.

• 1b. The input format is invalid.

  • 1b1. ContactCS requests the user to provide the correct format and shows correct syntax, example

  • 1b2. User enters new input

  • Steps 1b1 - 1b2 are repeated until the format for the entered input is correct

    Use case resumes from step 2.

• 1c. No matching contacts found.

  • 1c1. ContactCS displays a message to the user saying that there is no matching contacts found

    Use case ends.

Use case: UC03 List contacts

MSS

1. User requests to list the contacts

2. ContactCS shows a list of contacts

   Use case ends.

Use case: UC04 Delete a person

MSS

1. User requests to list (UC03) the contacts or search (UC02) for contact(s)

2. User requests to delete a person or multiple persons in the list

3. ContactCS deletes the person(s)

   Use case ends.

Extensions

• 2a. The given index/indices is/are invalid.

  • 2a1. ContactCS requests the user to provide the correct index/indices

  • 2a2. User enters new index/indices

  • Steps 2a1 - 2a2 are repeated until the index/indices entered is/are valid

    Use case resumes from step 3.

Use case: UC05 Edit contact information

MSS

1. User requests to list (UC03) the contacts or search (UC02) for contact(s)

2. User requests to edit contact information for a specific person in the list, providing the new contact details

3. ContactCS updates the contact details based on the information provided by the user

   Use case ends.

Extensions

• 2a. The given index is invalid.

  • 2a1. ContactCS requests the user to provide the correct index

  • 2a2. User enters new index

  • Steps 2a1 - 2a2 are repeated until the index entered is correct

    Use case resumes from step 3.

• 2b. The given format is invalid.

  • 2b1. ContactCS requests the user to provide the correct format and shows the valid command format

  • 2b2. User enters new input

  • Steps 2b1 - 2b2 are repeated until the format for the entered input is valid

    Use case resumes from step 3.

Use case: UC06 View usage instructions

MSS

1. User requests to view usage instructions for the app

2. ContactCS displays the usage instructions and commands available for the user

   Use case ends.

Extensions

• 1a. The given format is invalid.

  • 1a1. ContactCS requests the user to provide the correct format and shows the valid command format

  • 1a2. User enters new input

  • Steps 1a1 - 1a2 are repeated until the format for the entered input is correct

    Use case resumes from step 2.

Use case: UC07 Undo actions

MSS

1. User requests to undo the last action that modified contact list data

2. ContactCS reverts to the previous state

   Use case ends.

Extensions

• 1a. No modification of contact list data has been performed yet.

  • 1a1. ContactCS shows an error message indicating that there is no action to undo

    Use case ends.

• 1b. The given format is invalid.

  • 1b1. ContactCS requests the user to provide the correct format and shows the valid command format

  • 1b2. User enters new input

  • Steps 1b1 - 1b2 are repeated until the format of the entered input is correct

    Use case resumes from step 2.

Use case: UC08 Redo actions

MSS

1. User requests a redo

2. ContactCS reapplies the last undone action

   Use case ends.

Extensions

• 1a. User tries to redo an action without having undone one first.

  • 1a1. ContactCS shows an error message indicating that there is no action to redo

    Use case ends.

• 1b. The given format is invalid.

  • 1b1. ContactCS requests the user to provide the correct format and shows the valid command format

  • 1b2. User enters new input

  • Steps 1b1 - 1b2 are repeated until the format of the entered input is correct

    Use case resumes from step 2.

Non-Functional Requirements

1. The application should work on any mainstream OS as long as it has Java 17 installed.
2. The application should be able to hold up to 1000 persons without a noticeable sluggishness in performance for typical usage.
3. A user with above average typing speed for regular English text (i.e. not code, not system admin commands) should be able to accomplish most of the tasks faster using commands than using the mouse.
4. The UI should not lag or freeze anytime during normal usage.
5. All usage of data related to NUS should abide by NUS regulations.
6. The application should remain backwards compatible, namely all data generated in previous versions should be usable in newer versions.
7. The application should be easily usable by NUS year 1 Computer Science students with any skill level.
8. Managing contacts will remain as the core feature in all iterations.
9. The application should not crash for any input given by the user.
10. The application will remain as a CLI based application.

Glossary

• Architecture Diagram: A visual representation of all the elements that make up part, or all, of a system
• high-level design: Representing the system or architecture in an abstract way, without diving into technical details, implementation specifics, or granular components
• cleanup methods: Functions or procedures that are invoked to release resources, close connections, or finalize tasks before an application or component shuts down
• Sequence Diagram: A visual representation of the sequence of interactions between different objects, components, or actors in a system over time
• UI: User Interface - the space where interactions between humans (users) and machines (software or hardware) occur
• API: Application Programming Interface - A set of rules, protocols, and tools that allows different software applications to communicate and interact with each other
• GUI: Graphical User Interface - A type of user interface that allows users to interact with software applications or devices through graphical elements rather than using text-based commands
• JavaFx: A Java library used for building modern GUIs
• lifeline (in a Sequence Diagram): A graphical element that depicts the lifespan of an object or actor in the system as interactions occur over time
• JSON: An open standard file format and data interchange format that uses human-readable text to store and transmit data objects consisting of attribute–value pairs and arrays
• CLI app: Command-Line Interface application - A software application that allows users to interact with it through a text-based interface by typing commands in a console or terminal
• Mainstream OS: Windows, Linux, Unix, MacOS
• Private contact detail: A contact detail that is not meant to be shared with others

---

Appendix: Instructions for manual testing

Given below are instructions to test the app manually.

Launch and shutdown

1. Initial launch

   1. Download the jar file and copy into an empty folder

   2. Open a terminal and cd into the folder with the jar file.

   3. Run java -jar contactcs.jar.
      Expected: Shows the GUI with a set of sample contacts. The window size may not be optimum.

2. Saving window preferences

   1. Resize the window to an optimum size. Move the window to a different location. Close the window.

   2. Re-launch the app by rerunning java -jar contactcs.jar in the terminal.
      Expected: The most recent window size and location is retained.

Deleting person(s)

1. Deleting person(s) while all persons are being shown

   1. Prerequisites: List all persons using the list command. Multiple persons in the list.

   2. Test case: delete 1
      Expected: First contact is deleted from the list. Details of the deleted contact shown in the status message.

   3. Test case: delete 1 3
      Expected: First and third contacts are deleted from the list. Details of the deleted contacts shown in the status message.

   4. Test case: delete 0
      Expected: No person is deleted. Error details shown in the status message. Status bar remains the same.

   5. Other incorrect delete commands to try: delete, delete x (where x is larger than the list size), delete abc
      Expected: Similar to previous.

Saving data

1. Testing data persistence across sessions

   1. Add a new person using the add command.

   2. Close the app.

   3. Re-launch the app.
      Expected: The newly added person should still be present in the list.

   4. You can try out other data changing commands such as delete, edit, clear.

2. Dealing with missing data file

   1. Exit the address book, if it is running.
   2. delete the contactcs.json file inside the folder named data. It is located in the same folder as the jar file.
   3. Relaunch the app.
      Expected: The app should create a new contactcs.json file filled with sample data.

Undo/Redo

1. Testing how undone states are purged after committing
   1. Add Alice using add n/Alice p/11111111 command.
   2. Add Bob using add n/Bob p/22222222 command.
   3. Undo the previous command.
   4. Add Catherine using add n/Catherine p/33333333 command.
   5. Undo the previous command. Now only Alice is in the list.
   6. Then, perform a redo. Expected: Catherine is added back. Bob is lost forever.

Finding contacts

1. Testing mixture of fields specified in a single find
   1. Prerequisites
      1. Clear the list using the clear command.
      2. Run add n/Alice p/11111111 r/CS1101S t/tag1
      3. Run add n/Bob p/22222222 r/MA1521 t/tag2
      4. Run add n/Catherine p/33333333 r/CS2103T t/tag3
   2. Run find n/Alice n/Bob r/CS1101S.
      Expected: Only Alice is shown in the list.
      Reason: The find command finds all persons with (name Alice or Bob) and role CS1101S.
   3. Run find r/CS1101S r/MA1521 t/tag1 t/tag3
      Expected: Only Alice is shown in the list.
      Reason: The find command finds all persons with (module role CS1101S or MA1521) and (tag1 or tag 3).

Editing module roles

1. Editing module roles of a person
   1. Prerequisites
      1. Clear the list using the clear command.
      2. Run add n/Alice p/11111111 r/CS1101S t/tag1
   2. Run edit 1 r/CS2103T
      Expected: The role of Alice is changed to CS2103T. The status message shows the change.

Adding a person with module roles

1. Using role acronyms

   1. Run add n/Alice p/11111111 r/CS1101S-Prof r/CS2103T-TA
      Expected: Alice is added module roles CS1101S-Professor and CS2103T-Tutor.
      Note that TA is short for Tutor and Prof is short for Professor. You can also specify the full role name.

2. Not specifying the role

   1. Run add n/Alice p/11111111 r/MA1521
      Expected: Alice is added with module role MA1521-Student.
      Reason: If the role is not specified, the default role is Student.

Appendix: Planned Enhancements

Team size: 5

1. Make find command shorter by allowing fuzzy search of module-role, such that user can find all contacts with roles related to a specified module, just by inputting module code or even fraction of it. (For example:find r/CS2103T finds all contacts related to CS2103T, find r/CS finds all contacts related to modules whose module codes start with CS). The current find command automatically assumes that user wants to search student role if only a module code is supplied to the find command, which may be counter-intuitive to some users. Sometimes, user cannot remember the full module code, or wants to search over a wider range of modules, but the current implementation does not support that either, hence reducing the usefulness of this command.

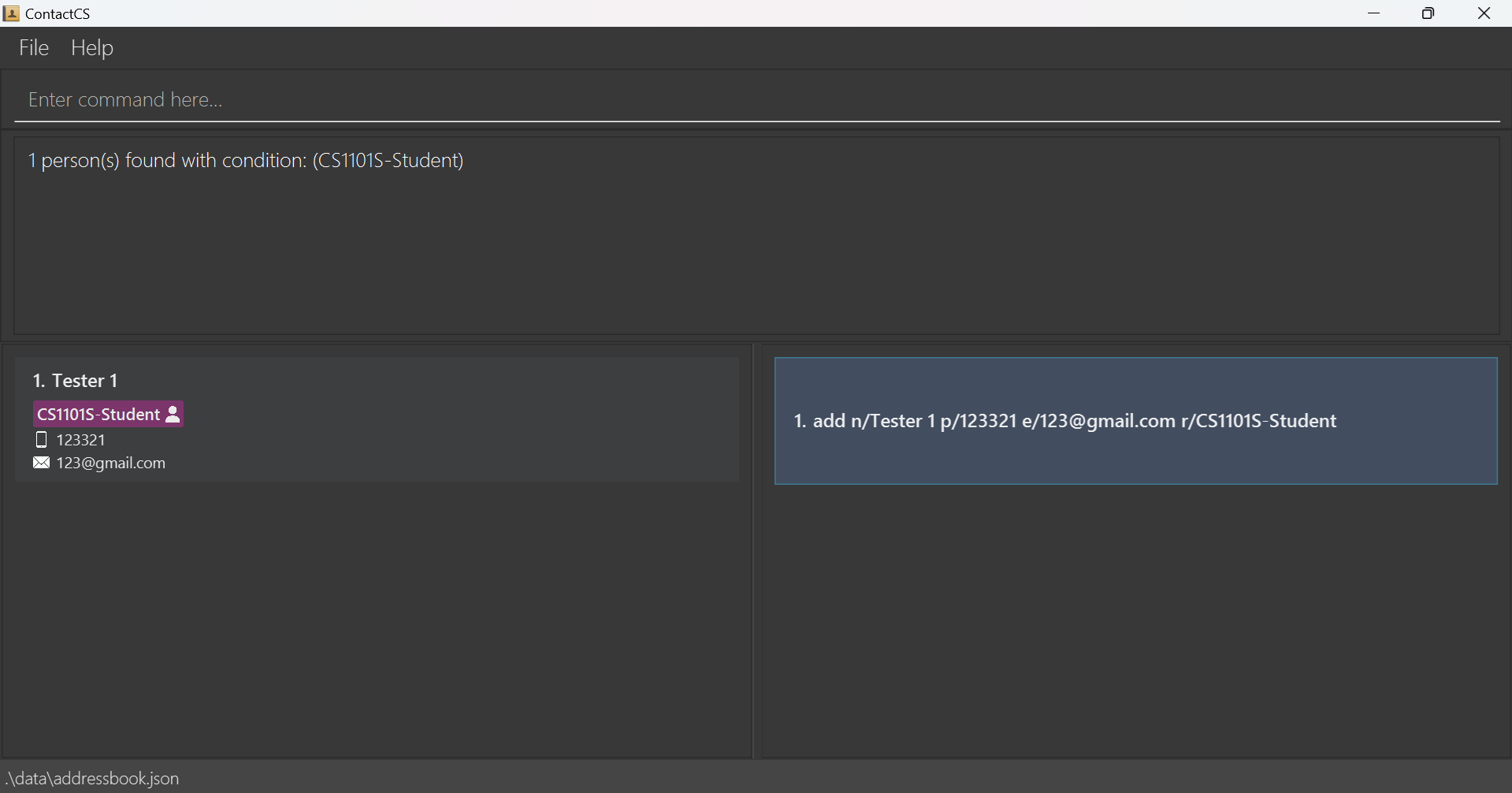

   (As shown in the screenshot, find r/CS1101S only matches contacts with role CS1101S Student, despite that there are 2 CS1101S professors in the sample data.)

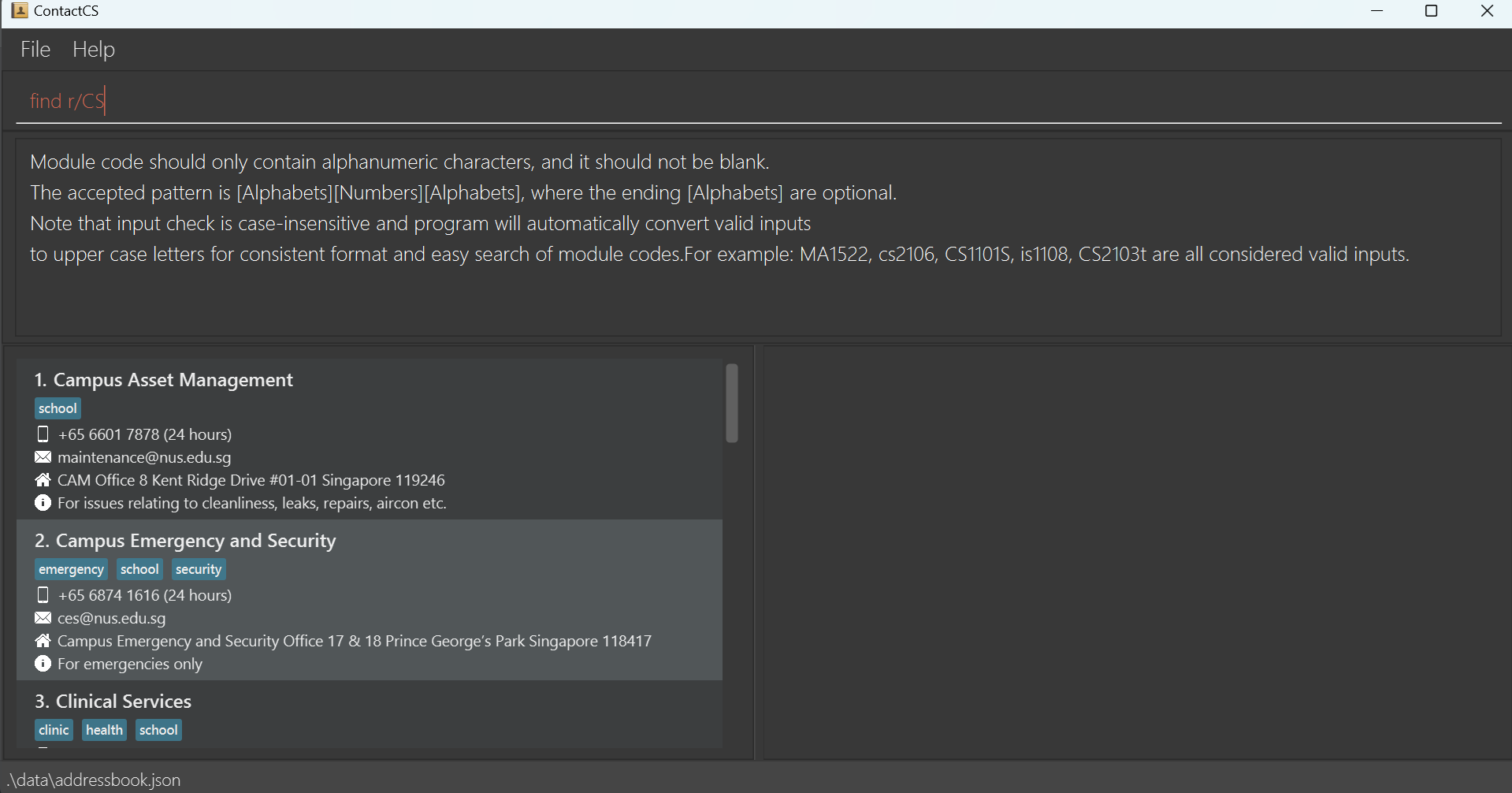

   (As shown in the screenshot, find r/CS results in error messages because construction of search query requires exact module code to work.)

   This limitation is due to our current system design which forces a role type to be assigned to an exact module code into the search query for the find command to execute, we plan to adopt other ways of constructing the query to allow for more general search of module-role in the future.


2. Allow deletion of other optional data fields of a contact, using the current edit command approach. Currently, only the description and tag fields can be deleted, by specifying the corresponding prefix followed by an empty string (For Example: edit 9 t/ removes all tags, while edit 9 d/ removes the description of the ninth contact in the current list). However, other optional fields such as the phone, email and address cannot be removed as of v1.6.

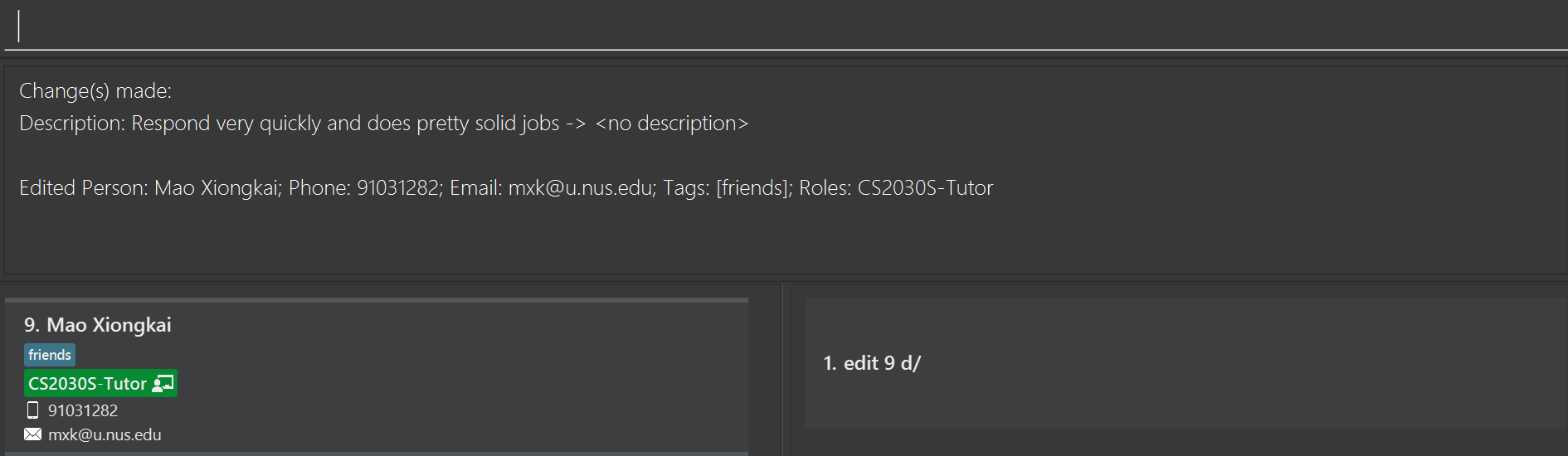

   (As shown in the screenshot, edit 9 d/ successfully removes description field from the ninth person in the current list.)

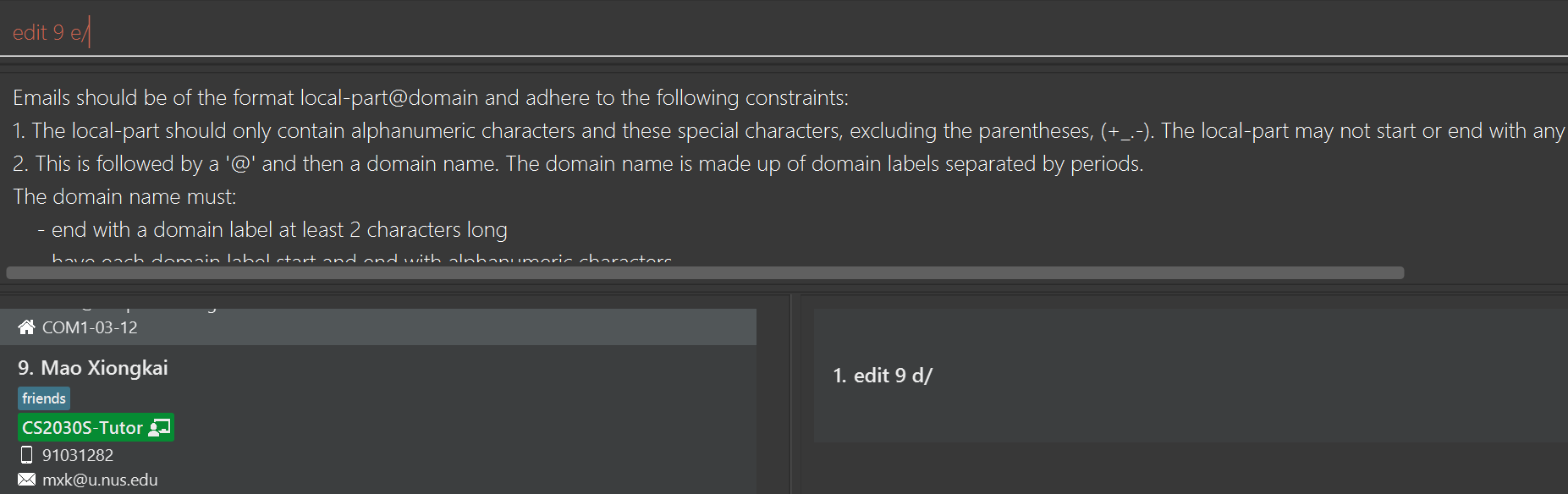

   (As shown in the screenshot, edit 9 e/ as an attempt to remove email from ninth person in the current list fails, because empty email field for edit command is not allowed. Similar issues happen when removing phone using edit 9 p/ and removing address using edit 9 a/.)

   This can be very troublesome to user if he/she accidentally adds these fields to a contact and realized that these wrong fields cannot be removed. If these fields are left unchanged over a long period of time, user may forget that these fields are wrong and hence use the wrong information in the program, which is definitely not desired. We plan to allow edit command to accept empty input for phone, email and address and change the parser such that the empty inputs for these fields can be considered as deleting them from the selected contact.


3. Allow the user to delimit special prefixes appearing in the contact details. Currently, if any of the input fields contain the special prefixes, the string will be split into multiple fields, which may not be the user's intention. For example, if the user attempts to execute edit 1 d/For a/b testing, the command will be wrongly interpreted as

   • change the description of the first contact to For, and

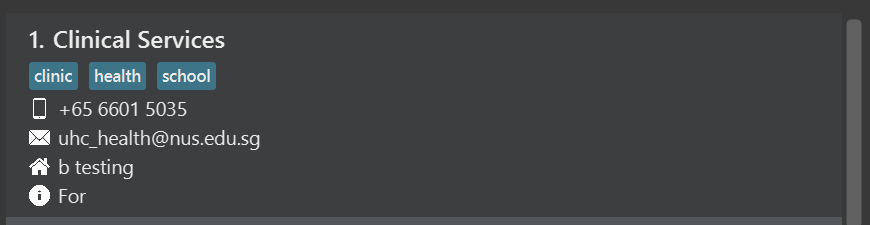

   • add a new contact with description b testing. (refer to the screenshot below)





   The current workaround is to add a non-whitespace character in front of the prefix (i.e. edit 1 d/For 'a/b testing), but this is not intuitive to the user. We plan to follow a more standard approach of using a backslash to escape the special prefixes. More importantly, the parser will remove the backslash at the end of parsing, so that the user does not see the backslash in the final output.


4. Enforce realistic role assignment for contacts. Currently, a contact can have multiple roles, such as both "Professor" and "Student". This is unrealistic, as an individual is typically either a student or a professor, but not both.


   (As shown in the screenshot, Royston is both a CS1101S professor and CS2100 student.)

   We plan to enforce stricter role assignment, ensuring that:

   • A contact can be designated as a Professor across multiple modules.
   • Alternatively, a contact can be designated as either a Student or a Tutor across multiple modules.



5. Allow command navigation using up and down arrows. Currently, the user has to type the command from scratch if he/she wants to execute a previous command again. This can be very troublesome if the user wants to execute the same command multiple times, or if the user wants to execute a similar command to the previous one. We plan to allow the user to navigate through the command history using the up and down arrows.


6. Allows sorting of contacts based on different fields. Currently, the contacts are displayed in the order they are added to the address book. This can make it challenging for users to locate a contact if they are unsure of specific search criteria. We plan to allow the user to view the contacts in a sorted order to find the contact he/she is looking for more easily.


7. Allow multi-word tags for contacts. Currently, tag field only allows alphanumeric inputs for tag creation, which means spaces, underscores(_) and dashes(-) are not allowed in the input, and as a result prevents user from creating multi-word tags for contacts.

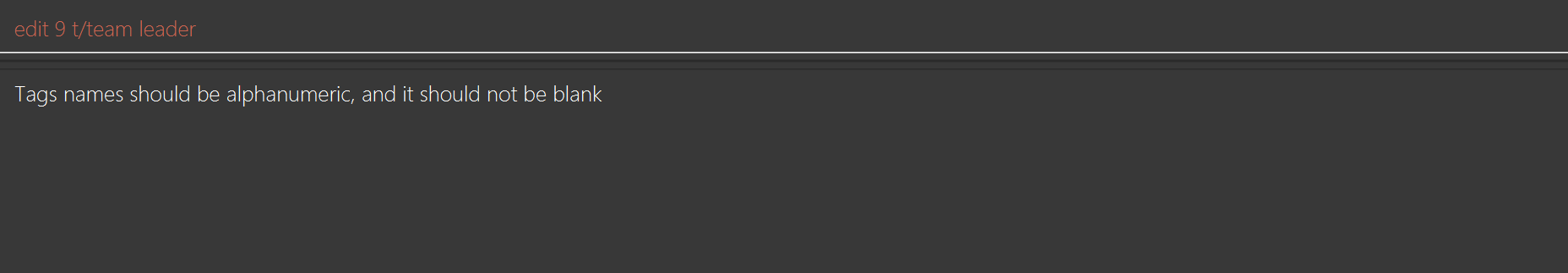

   (As shown in the screenshot, edit 9 t/team leader as an attempt to replace existing tags of ninth person in the current list shows an error message, because tag input team leader contains space which is not allowed, same issue happens with the add command)

   This is not very suitable design because user may want to create multi-word tags such as team leader, best friend, financial office etc, and the current validation method does not offer this level of flexibility. Therefore, we plan to loosen the restriction on tag creation input to allow space for word separation, so that user can create multi-word tag to contacts for easier management.

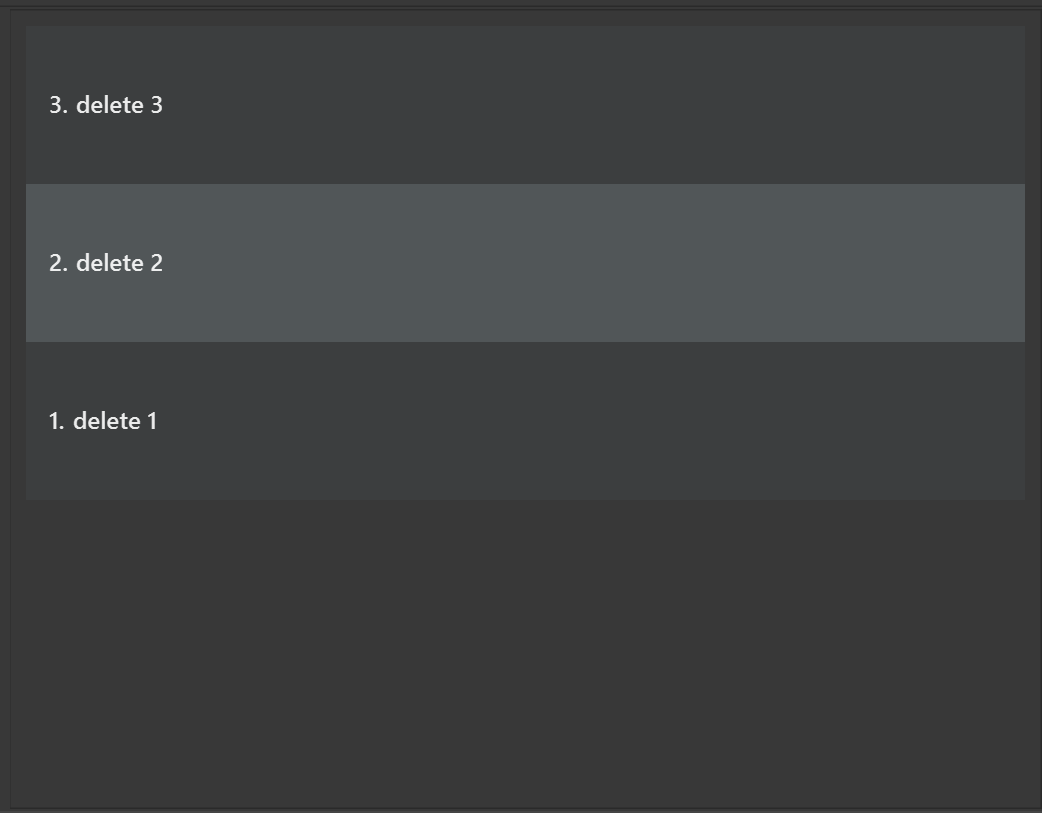

8. Reflect the true redo/undo states of the address book in the history command list. Currently, the history command list only shows all data changing commands executed by the user and does not precisely reflect the current and history states of the address book. For example, if the user executes delete 1, then delete 2, then undo, then delete 3, the true history states are [delete 1, delete 3] since delete 2 has been purged. However, the history command list will only show all data changing commands executed so far, (refer to the screenshot below) which is not accurate. Moreover, we plan to highlight the current state of the address book in the history command list, so that the user can easily identify the current state of the address book.





9. Standardize Phone Number Format for Duplicate Detection. Currently, the application allows adding multiple contacts with phone numbers that may look different but essentially represent the same number. For example, +65 12345678 (24 hr) and 12345678 are treated as distinct, leading to potential duplicates and inconsistencies. We plan to implement a standardization process to recognize and handle variations in phone number formatting. Specifically:

• Strip country codes (like "+65") when detecting duplicates, assuming that the default region can be inferred.
• Ignore any additional annotations (e.g., "(24 hr)"), focusing only on the numeric phone number for duplicate checks.
• Ensure that both +65 12345678 and 12345678 are considered the same number to prevent duplicate entries.


10. Allow simultaneous adding and deleting module roles in a single edit command. Currently, it requires 2 separate edit commands if the user wants to replace existing module roles for a contact. We plan to allow the user to add and delete multiple module roles in a single edit command at the same time. For example, the user can execute edit 1 r/-CS1101S-Student r/+CS2103T-TA to replace the existing module role CS1101S-Student with CS2103T-TA for the first contact in the list.
